2926551A1-001-SXPPEI50GPA-50
$16.50
customers are viewing this product

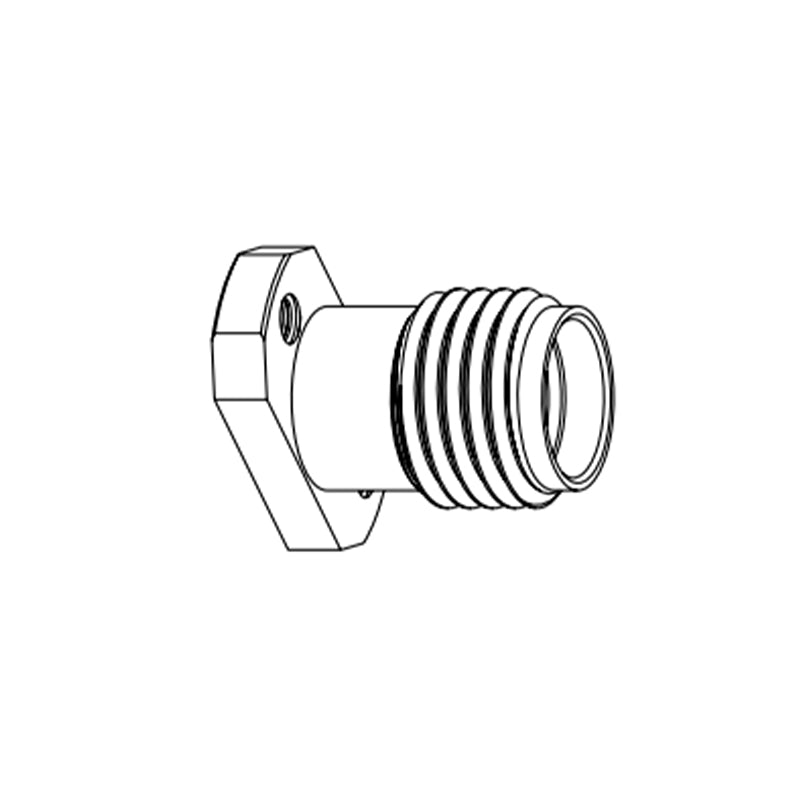

2.92MM JACK FL MT W/ 0-80 UNF THD
- BODIED: STAINLESS STEEL, PASSIVATED
- CONTACT: BERYLLIUM COPPER, GOLD PLATING
- INSULATOR: ULTEM, NATURAL
- IMPEDANCE: 50 OHM
- FREQUENCY RANGE: DC - 40GHz
- VSWR(RETURN LOSS): 1.06 （30dB）DC -12 GHz
1.12 （26dB）DC 12 - 20 GHz
1.29 （18dB）DC 20 - 40 GHz
7. DIELECTRIC WITHSTANDING VOLTAGE: 500VRMS，MIN
8. DURABILITY: 500 CYCLES MIN.
9. DURABILITY: 500 CYCLES MIN.
