925-137J-51P
$6.45
customers are viewing this product

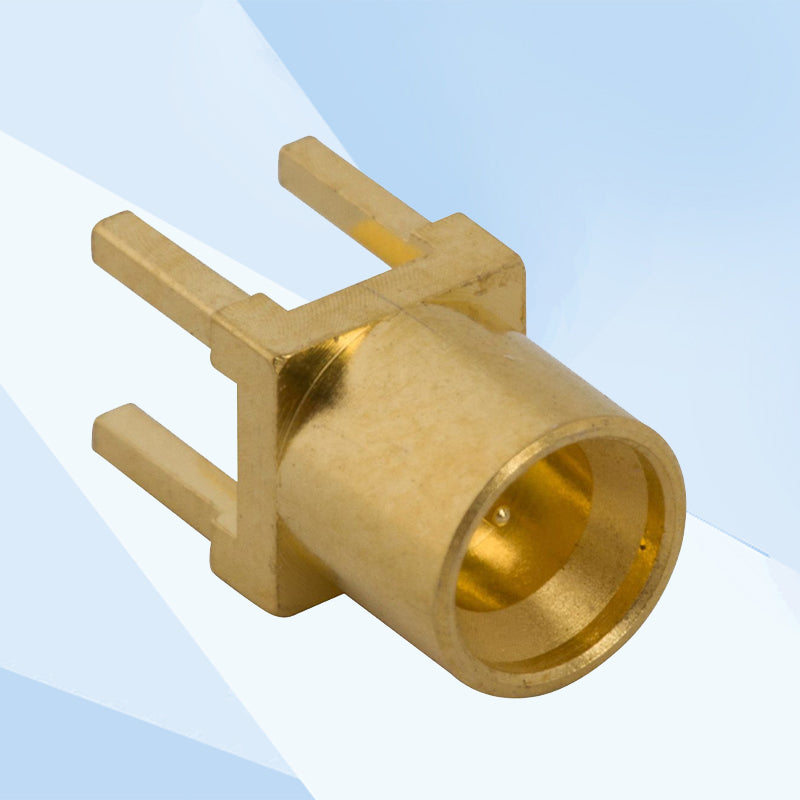

SMPM STR JACK SMOOTH BORE PCB THROUGH HOLE 4 LEGS RECEPTACLE
- BODY & CONTACT - BeCu, GOLD PLATING
- INSULATOR - PTFE, NATURAL
- IMPEDANCE: 50 OHMS
- FREQUENCY RANGE: DC - 40 GHz
- VSWR: 1.15 MAX @ DC - 10 GHz
- VSWR: 1.25 MAX @ 10-26.5 GHz
- VSWR: 1.35 MAX @ 26.5-40 GHz
- DIELECTRIC WITHSTAND VOLTAGE: 335 VRMS, MIN.
- DURABILITY: 500 CYCLES MIN
- TEMPERATURE RANGE: -65℃ TO +165℃
