034-1131-12G
$11.88
customers are viewing this product

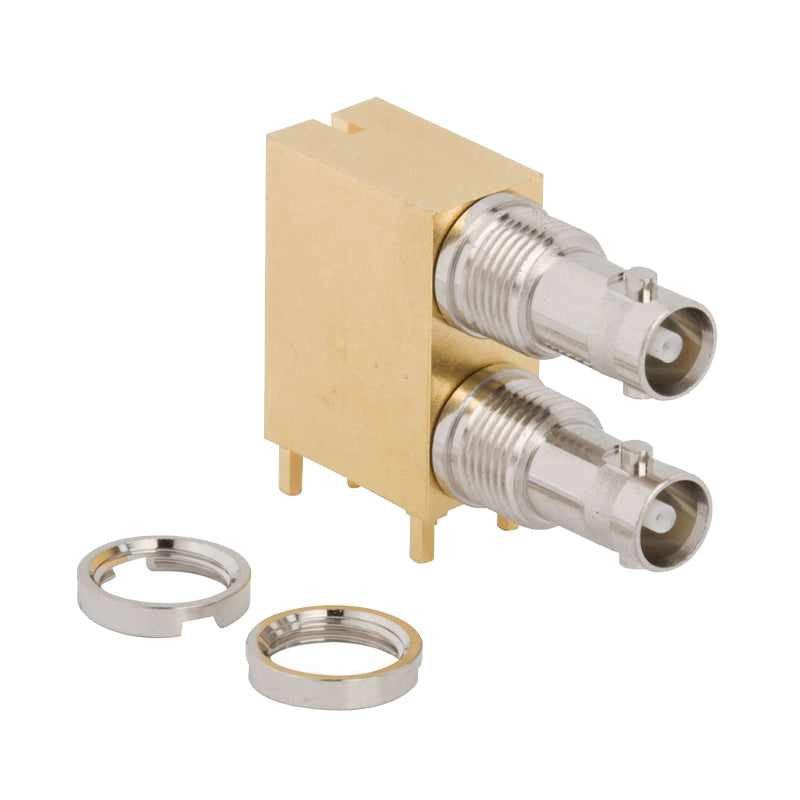

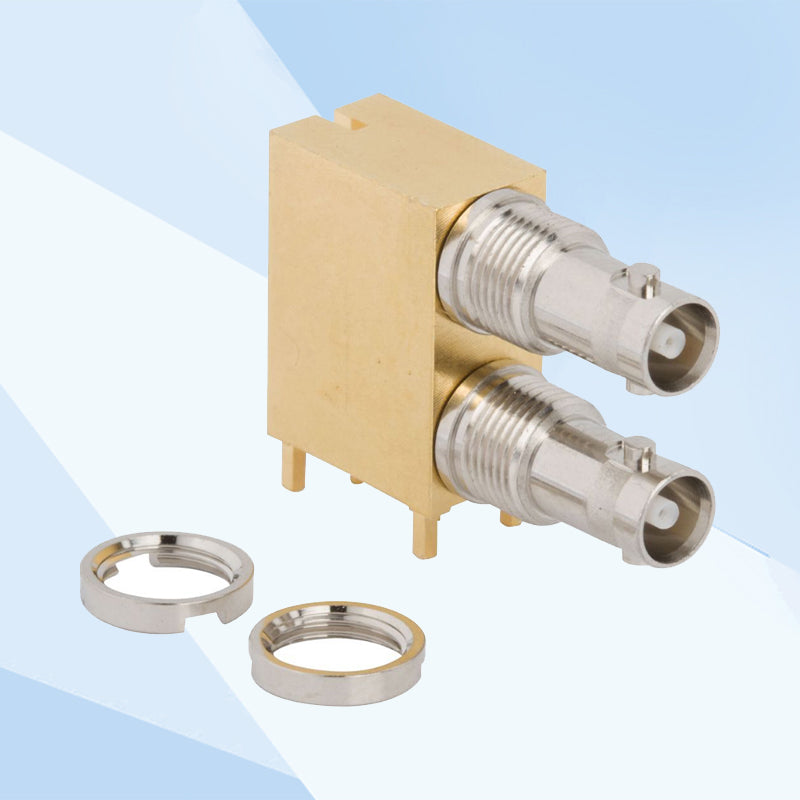

HD-BNC Right Angle PCB Dual Port Jack Through Hole Bulkhead Rear Mount 75 Ohm 12G Optimized
- HOUSING - BRASS, GOLD PLATING
- BODIES - BRASS, NICKEL PLATING
- CONTACT - BeCu, GOLD PLATING
- INSULATORS - PTFE, NATURAL
- SPANNER NUTS - BRASS, NICKEL PLATING
- IMPEDANCE: 75 OHMS
- FREQUENCY RANGE: DC - 18GHz
- RETURN LOSS: 20dB MIN @ DC - 6GHz
- RETURN LOSS: 15dB MIN @ 6 - 12GHz
- DURABILITY: 500 CYCLES MIN
- OPERATING TEMPERATURE RANGE: -65℃ TO +165℃
- RECOMMENDED SPANNER NUT TORQUE: 5-7 IN-LBS
