034-1135-12G
$9.72
customers are viewing this product

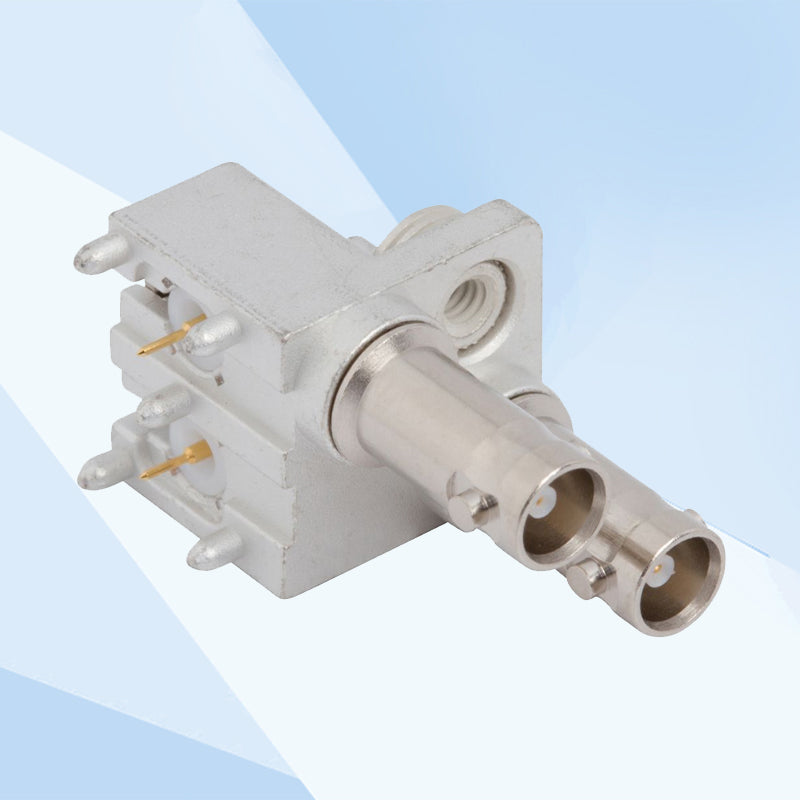

HD-BNC Right Angle PCB Jack Dual Port Through Hole Bulkhead Rear Mount 75Ohm 12G Optimized
- PCB BODY - ZINC ALLOY, MATTE TIN PLATING
- HD-BNC BODIES - BRASS, GOLD PLATING
- CONTACT - BeCu, GOLD PLATING
- INSULATORS - PTFE, NATURAL
- IMPEDANCE: 75 OHMS
- FREQUENCY RANGE: DC - 12GHz
- RETURN LOSS: 15dB MIN @ DC - 6GHz
- DURABILITY: 500 CYCLES MIN
- OPERATING TEMPERATURE RANGE: -65℃ TO +165℃
- REFLOW TEMPERATURE RANGE: 250℃ FOR 30 SECONDS MAX
