034-1065-12G
$2.83
customers are viewing this product

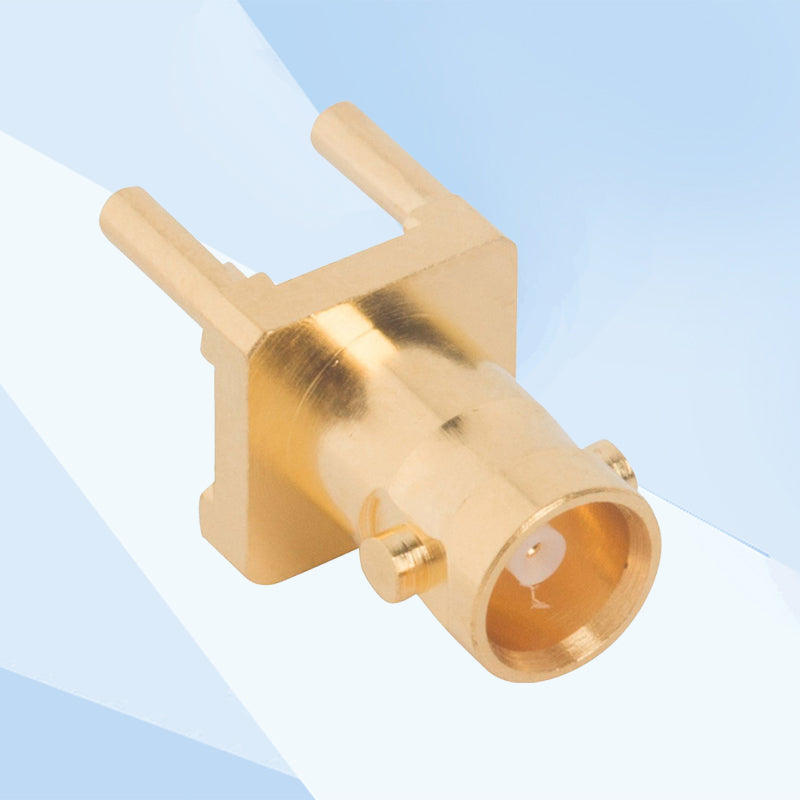

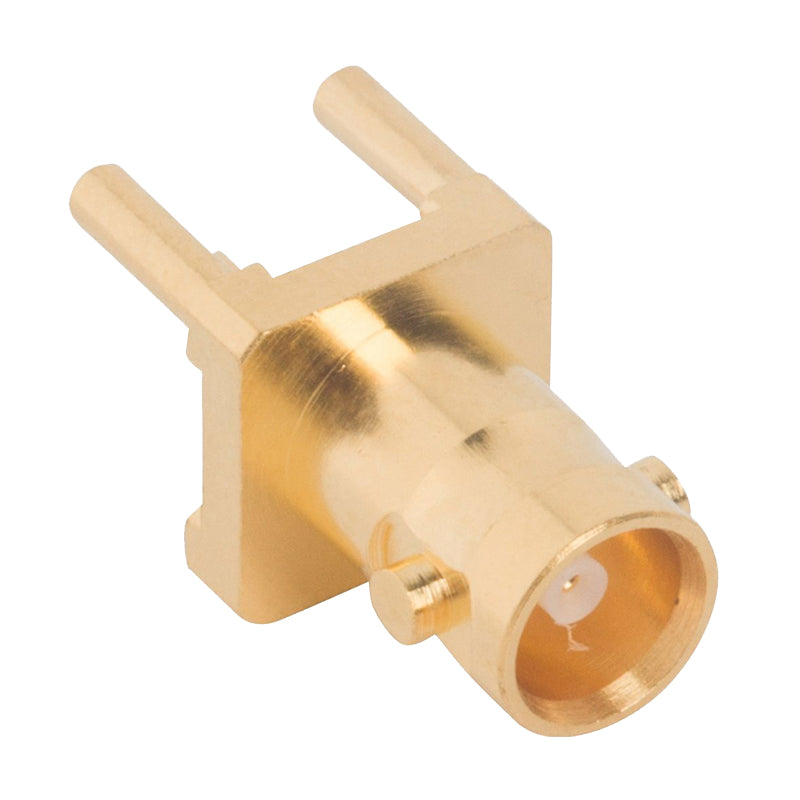

HD-BNC Straight PCB Jack Through Hole 75 Ohm 12G Optimized
- BODY - BRASS, NICKEL PLATING
- CONTACT - BeCu, GOLD PLATING
- INSULATOR - PTFE, NATURAL
- IMPEDANCE: 75 OHMS
- FREQUENCY RANGE: DC - 18GHz
- RETURN LOSS: 20dB MIN @ DC - 6GHz
- RETURN LOSS: 15dB MIN @ 6 - 12GHz
- DIELECTRIC WITHSTANDING VOLTAGE: 1000 VRMS, MIN
- INSULATION RESISTANCE: 10, 000 MEGAOHMS MIN
- VOLTAGE RATING: 335 VRMS
- DURABILITY: 500 CYCLES MIN
