034-1030
$3.80
customers are viewing this product

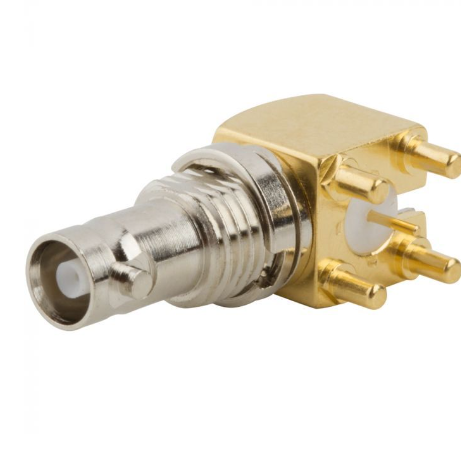

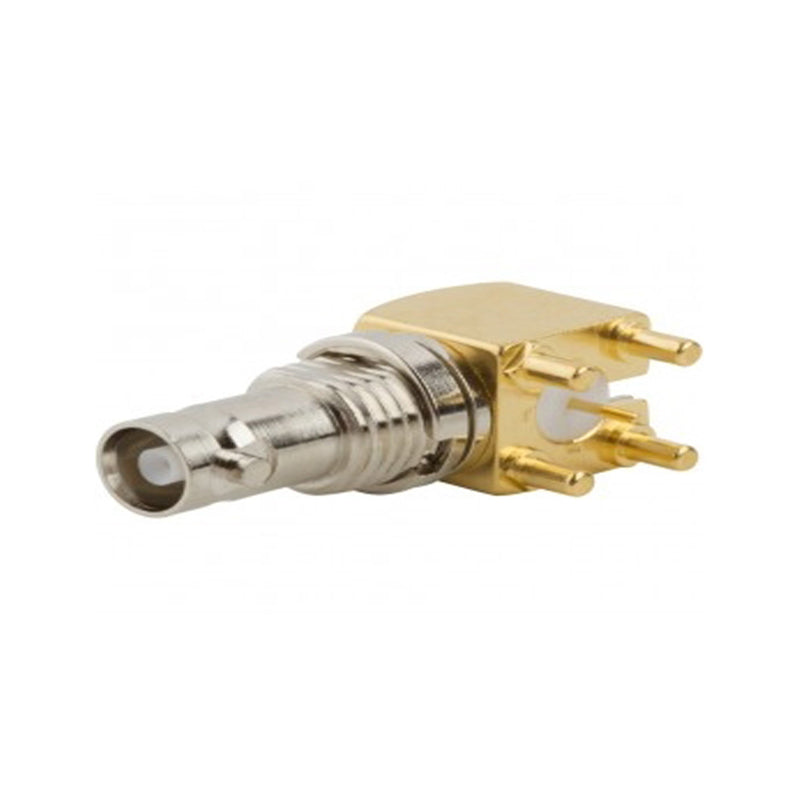

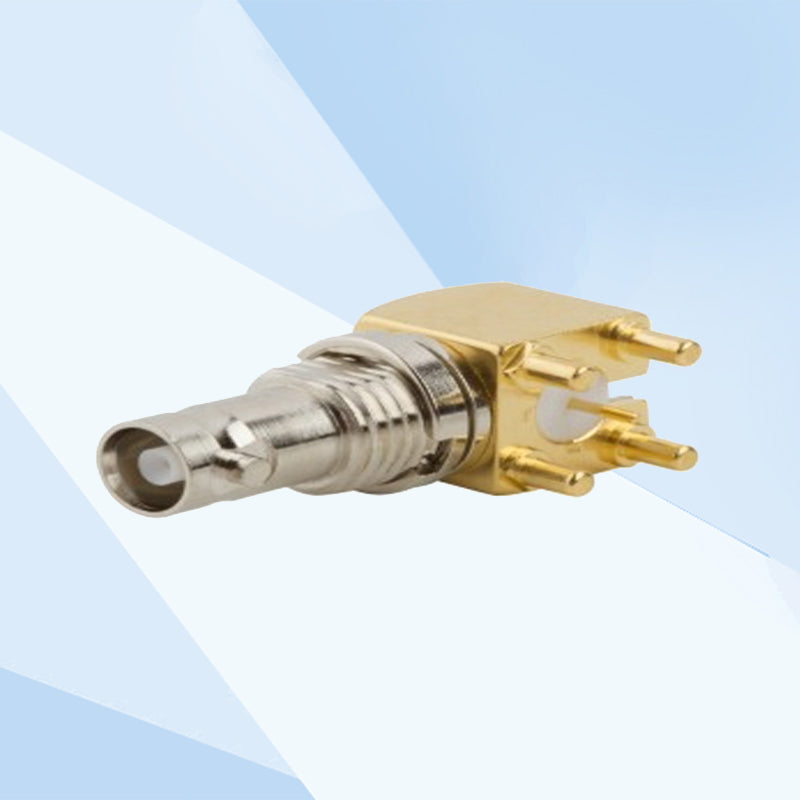

HD-BNC Right Angle PCB Jack Through Hole Bulkhead Rear Mount 75 Ohm 3G Optimized
- BODY, CAP & NUT - BRASS, NICKEL PLATING
- REAR BODY - BRASS, GOLD PLATING
- CONTACT - BeCu, GOLD PLATING
- INSULATORS - PTFE, NATURAL
- INSULATOR - ULTEM 1000, NATURAL
- IMPEDANCE: 75 OHMS
- FREQUENCY RANGE: DC - 18GHz
- RETURN LOSS: 25dB MIN @ DC - 6GHz
- RETURN LOSS: 10dB MIN @ 6 - 12GHz
- DIELECTRIC WITHSTANDING VOLTAGE: 1000 VRMS, MIN
- INSULATION RESISTANCE: 10, 000 MEGAOHMS MIN
- DURABILITY: 500 CYCLES MIN
