031-70537-12G
$3.60
customers are viewing this product

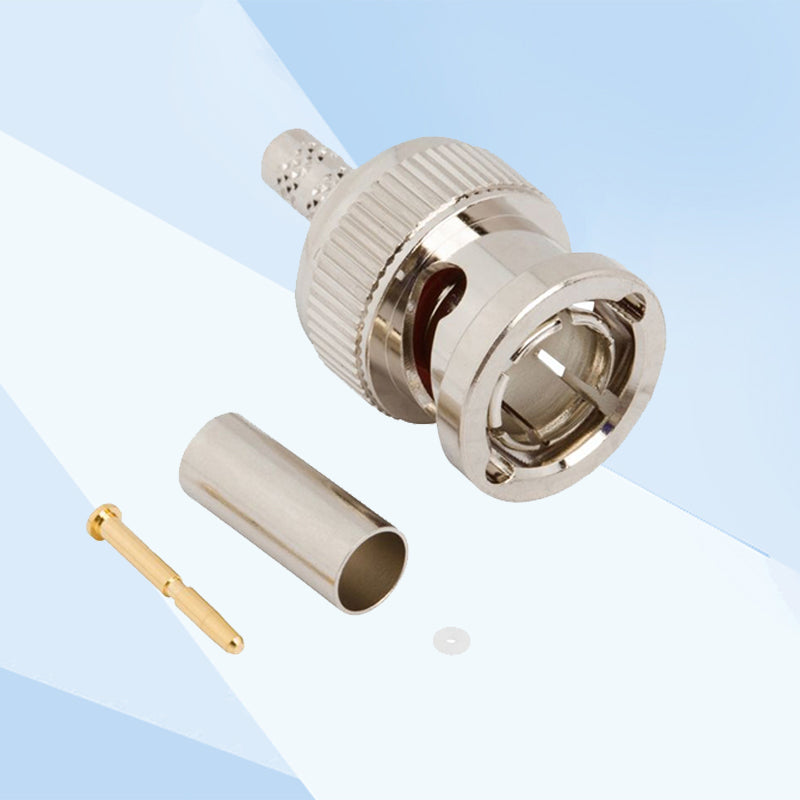

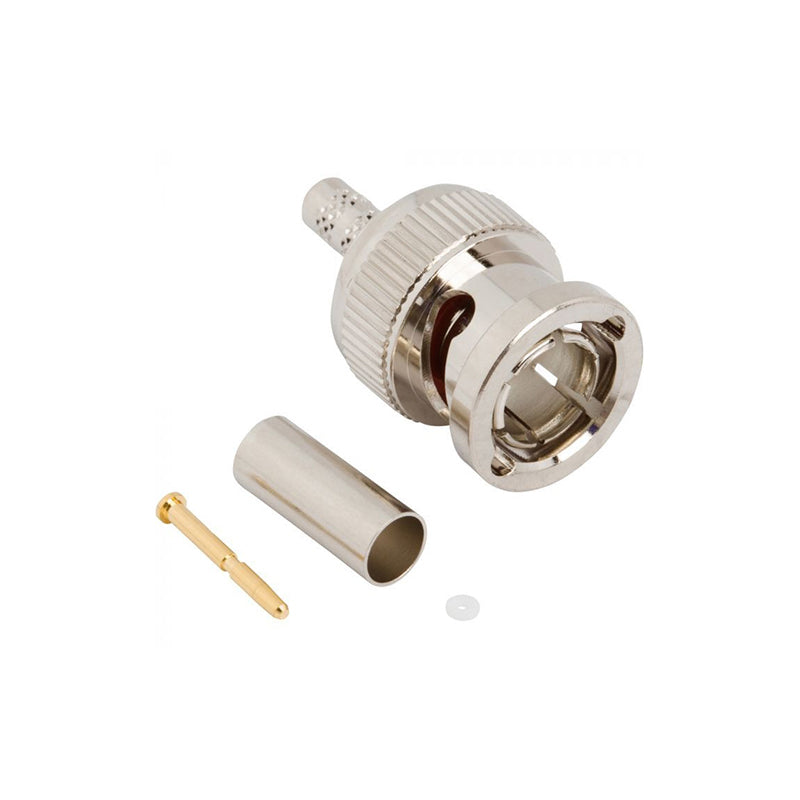

BNC Straight Crimp Plug Belden 1855A Belden 4855R Belden 4855P 75 Ohm 12G Optimized
- BODY - BRASS, NICKEL PLATING
- CONTACT PIN - BRASS, GOLD PLATING
- INSULATOR - PTFE, NATURAL
- IMPEDANCE: 75 OHMS
- FREQUENCY RANGE: DC - 12GHz
- RETURN LOSS: 30dB MIN @ DC - 6GHz
- RETURN LOSS: 15dB MIN @ 6 - 12GHz
- DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN
- DURABILITY: 500 CYCLES MIN
- TEMPERATURE RANGE: -30℃ TO +75℃
- CRIMPED FERRULE: HEX CRIMP SIZE .178"
- CRIMPED CONTACT PIN: HEX CRIMP SIZE 0042"
